Super bright SMD 5630 as light source
5 year warranty
Unique side beam design, ensure uniform light;
Built-in isolated constant current driver
No strobe,good for eye protection
Color: White,aluminum,bronze
Function: Microwave sensor&DIM

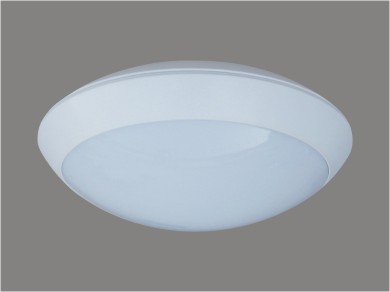

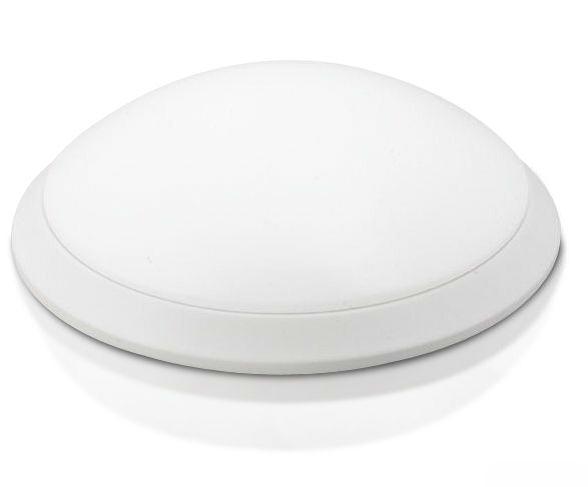

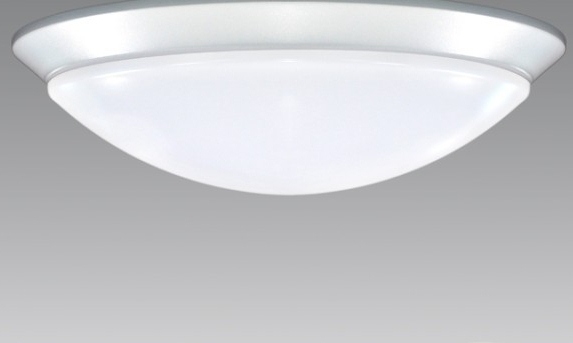

It is a decorative surface luminaire using high quality Samsung 0.5W SMD LEDs
as lighting source and high frequency driver in all models, suitable for wall and ceiling mounting.
The aluminum base is supplied complete in a variety of finishes. The diffuser is attached using a twist and
lock type, made by a high grade of PMMA that meets the IK 08 5J standard.
Ceiling light with Dimmable and Microwave sensor function is available.
SS-OYL-395mm-48P-25W-SMD SS-OYL-460mm-60P-31.5W-SMD
SS-OYL-260mm-24P-12.5W-SMD SS- OYL-326mm-36P-18.5W-SMD

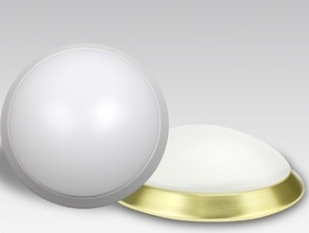

Color options:
Input: AC110-240V 50/60Hz
Light Source: Samsung 0.5W SMD LED
PF>0.9
Conversion Efficiency>85%
Beam angle: 120°
Color Rendering Index: CRI>75
CCT : cool white : 6000-6500K ,Commercial white : 4000-4500K , warm white : 2800-3300K
Mechanical Characteristics:
Material: Copper PCB, Aluminum base , PMMA cover ,
White or Satin finish base available
Working temperature: 55 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -20~50 degrees Celsius
Model
|
LED
|
Wattage
|
Lumens
|
Size
|
SS-OYL-260mm-24P-12.5W-SMD
|
24Pcs SAMSUNG 5730 LEDs
|
12.5W
|
650Lm
850Lm
|

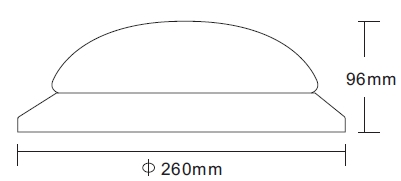

¢260mm
|
SS- OYL-326mm-36P-18.5W-SMD
|
36Pcs SAMSUNG 5730 LEDs
|
18.5W
|
1004Lm
1300Lm
|

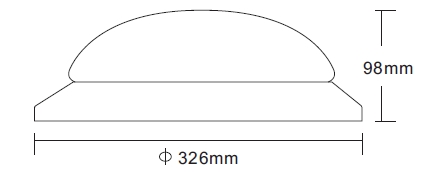

¢326mm
|
SS-OYL-395mm-48P-25W-SMD
|
48Pcs SAMSUNG 5730 LEDs
|
25W
|
1200Lm
1500Lm
|

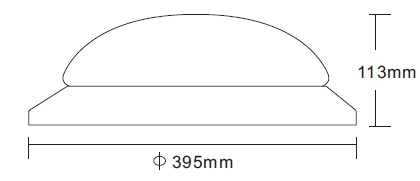

¢395mm
|
SS-OYL-460mm-60P-31.5W-SMD
|
60Pcs SAMSUNG 5730 LEDs
|
31.5W
|
1800Lm
2100Lm
|

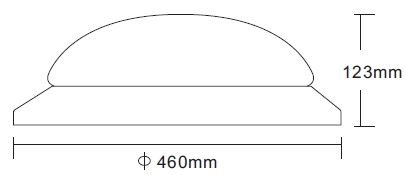

¢460mm
|

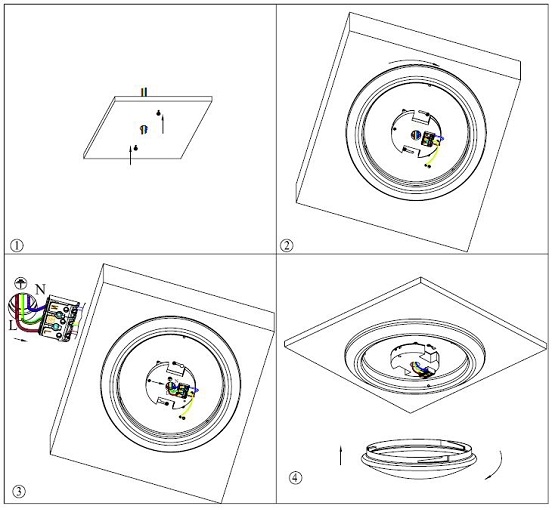

Suitable for wall and ceiling mounting, indoor using only
Only to be installed with qualified electrician
Kindly notice the power is off when installation
Supplied with LED and power supply
