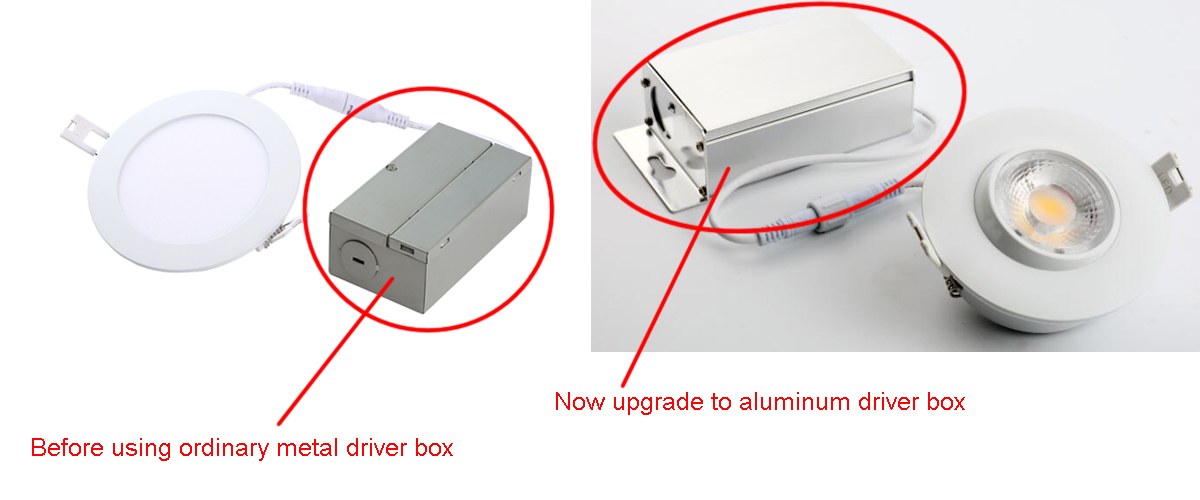

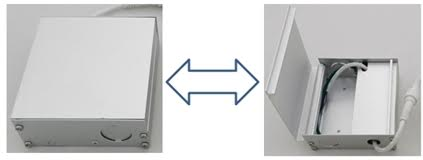

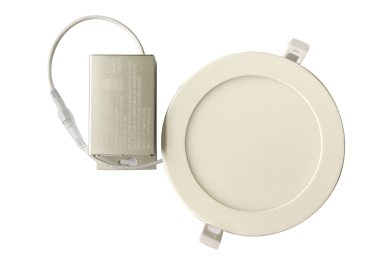

• Isolated driver inside junction box
• Aluminum heatsink / PC diffuser

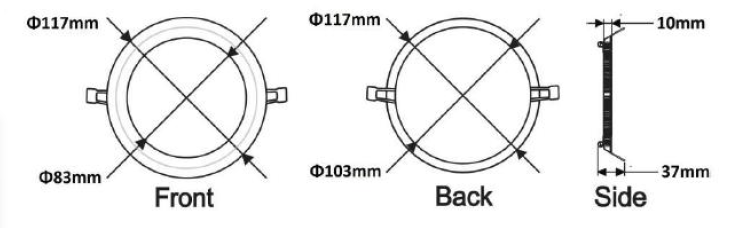

• Perfect for limited space installation locations / Only 0.4 Inch thickness
• Instant-on with no warm up time
• Free of harmful mercury, environment friendly

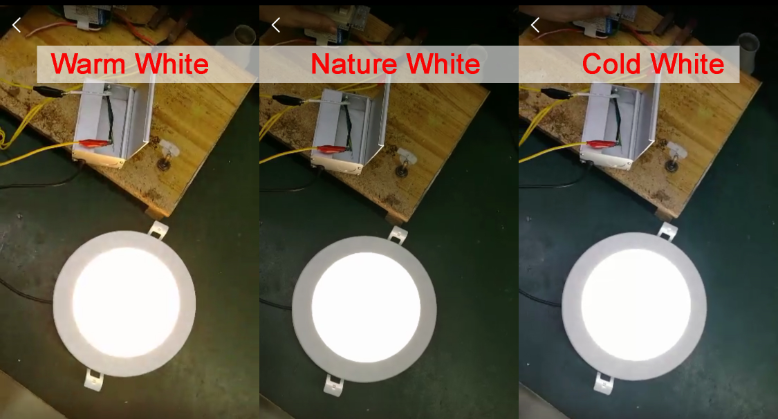

• 2700K to 6500K color temperature options available

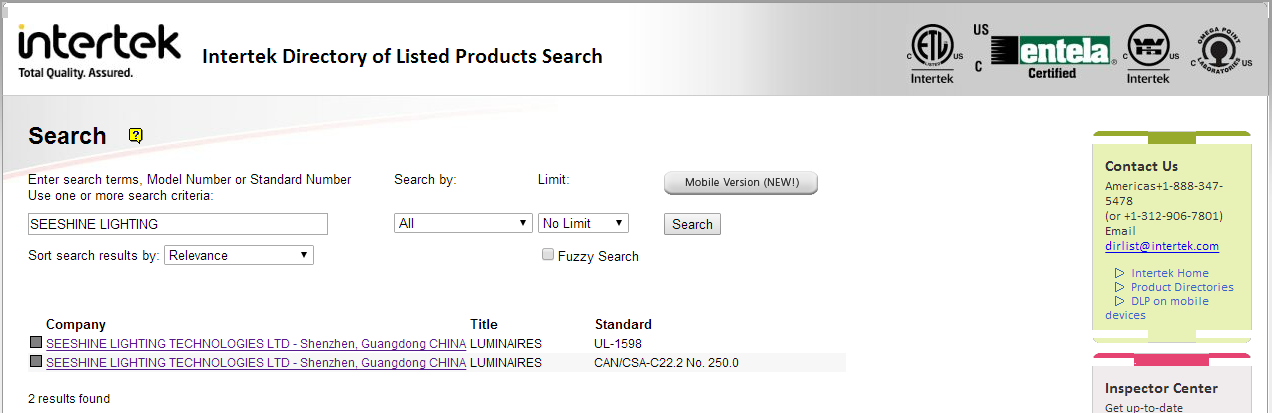

• ETL/cETL approved
• Energy Star listed
• RoHS compliant
• 3 years warranty
*Dimmable 100%-5% when using triac dimmers
Compatible dimmers include:Lutron SCL-153P, DVCL-153P, CTCL-153P among others
Features
Specifications
Technical information
Applications
Downloads
Photometric curve
Caution

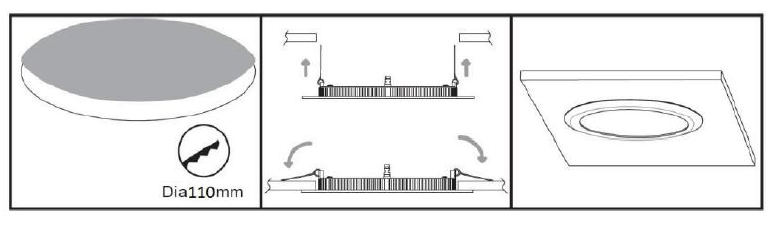

Installation
Driver Item Number: LT12W120-48-C0250
Driver type: Isolated constant current driver
Input voltage: 110/120V AC
Input current: 70mA
Power Factor: 0.96
Power Efficiency: 85%
Operating Temperature: -20~50℃

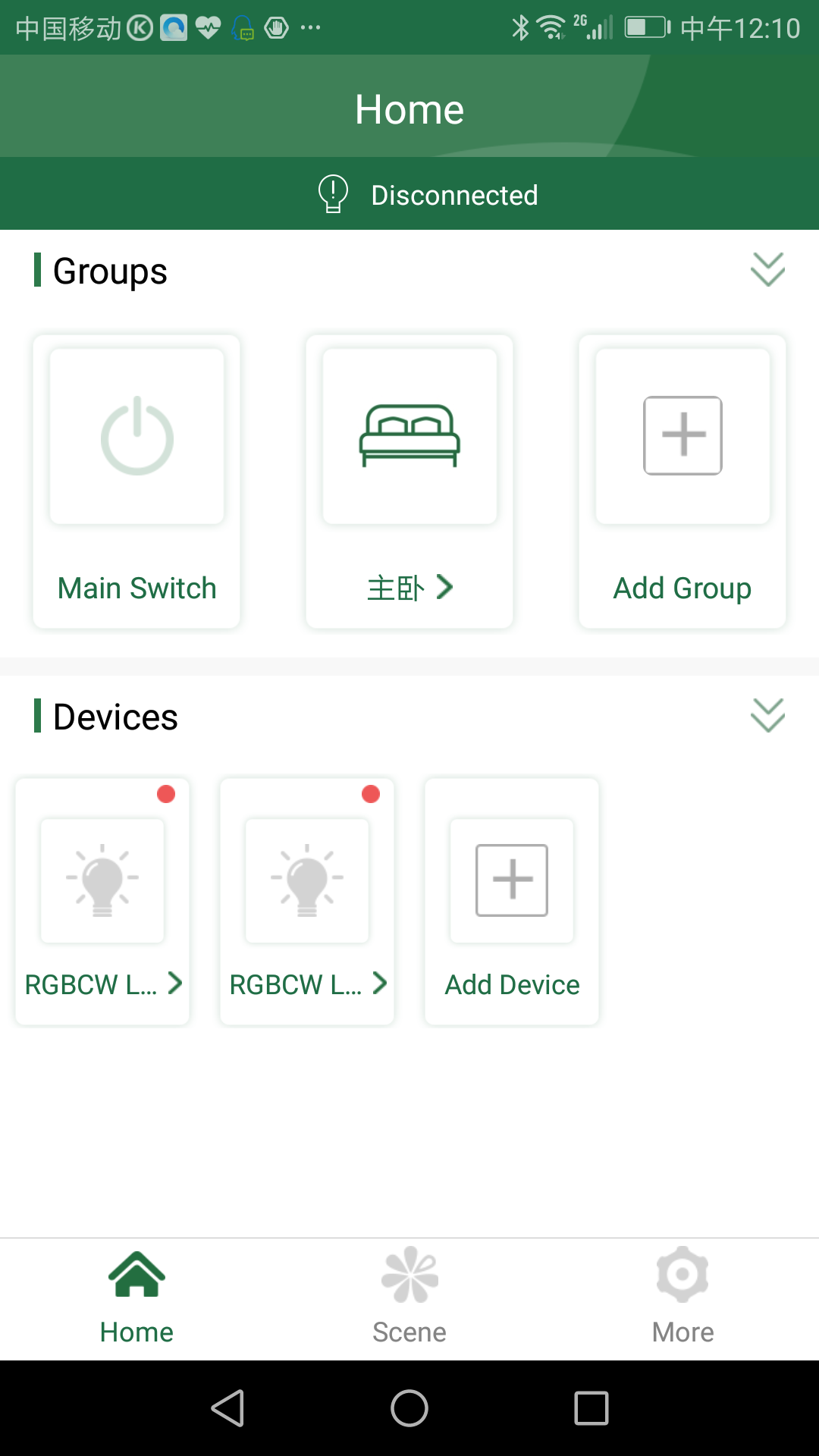

Available for phone control APP:
• Rated for indoor use only; do not use where exposed to weather
• Do not use other drivers
• Do not connect multiple fixtures to one driver
