ICL-SM-25,30,40-12W,25W,28W
surface mounted ceiling light adopts high
lumen SMD LED, fire-rated PC diffuser with even light output. IP54 waterproof structural design, it is an ideal replacement for damp locations. driver in top branded component with triac dimmable function, 120°wide beam angle.
●Up to 70% energy saving compared to standard CFL
●Long lifetime of 40,000 hours
●Dimmable when using triac dimmer
●120° wide beam angle
●CCT: 3000K 4000K
5000K 5700K
●No UV/IR light
Environment friendly, without Mercury or any other hazardous substances
- Features
- Specifications
- Technical information
- Applications
- Downloads
- Photometric curve
- Caution

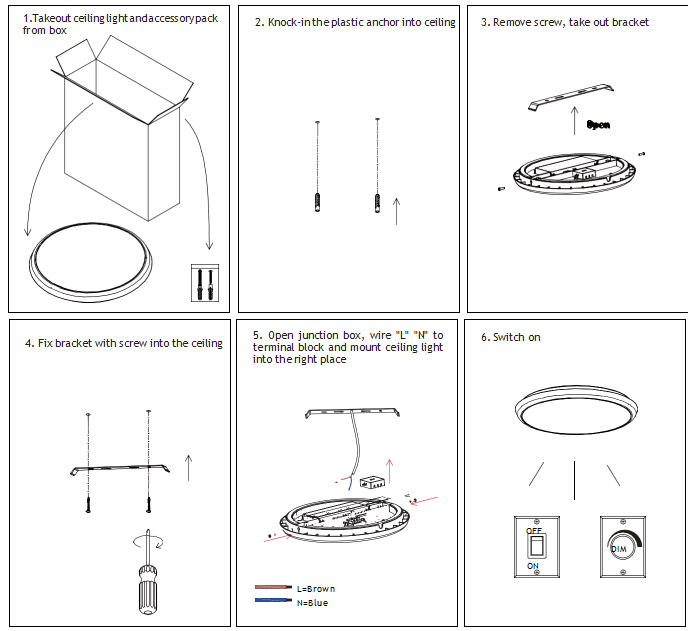

- Installation
|
Driver data
|
DIM
|
Non-dim
|
|
Input rated Voltage
|
AC230V
|
AC230V
|
|
Frequency
|
50Hz
|
50Hz
|
|
Input Voltage
|
AC200-240V
|
AC200-240V
|
|
Efficiency
|
≥88%
|
≥88%
|
|
No load wattage
|
≤0.5W
|
≤0.4W
|
|
Power Factor
|
≥0.9
|
≥0.9
|
|
Power tolerance
|
±5%
|
±5%
|
|
Current output tolerance
|
±5%
|
±5%
|
|
Dimming range
|
8%-100%
|
—
|
|
Dimmer
|
Triac dimmers
|
—
|
|
Short circuit protection
|
PASS
|
PASS
|
|
Over voltage protection
|
PASS
|
PASS
|
|
Over temperature protection
|
PASS
|
PASS
|
|
Withstand voltage
|
AC3750V
|
AC3750V
|
