Adopt brand LED(CREE) and LED driver .
Unique thermal conductivity material for COB LED to solve the heat dissipation .Ultra pure aluminum with special facets,give off highly efficient lighting and a homogeneous distribution of the light beam.
Special tempered glass with optical design combine with reflector get less UGR.

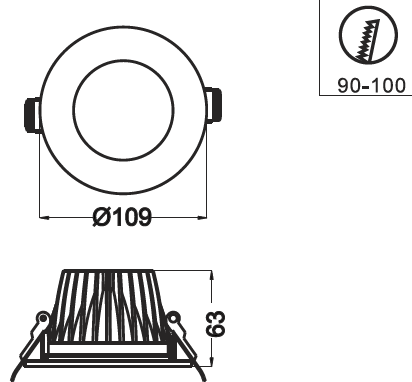

4INCH/ 5INCH/6 INCH/8 INCH for different request with round and squre cover to change.
IP65 Rating are available.
|
Input Voltage
|
Non-dim
|
AC100-240V,50/60 Hz
|
|
Electrical Classification
|
II
|
|
Ingress Protection (IP)
|
IP20/IP65
|
|
Operating Temp.
|
—10℃—45℃
|
|
Operating Humidity
|
0-90%
|
|
Storage Temp.
|
—20℃—65℃
|
|
Tc(surface temperature)
|
65℃
|
|
LED Light Source (Brand)
|
COB/Samsung SMD LED
|
|
CRI
|
Ra＞80Ra
|
|
CCT
|
3000K/4000K/5000K
|
|

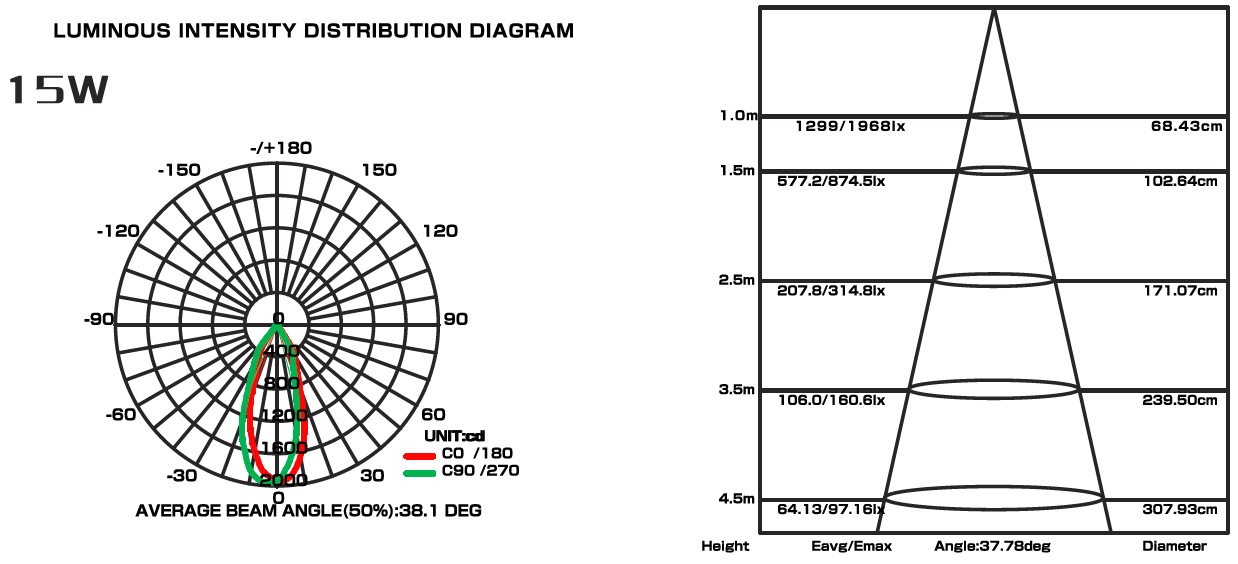

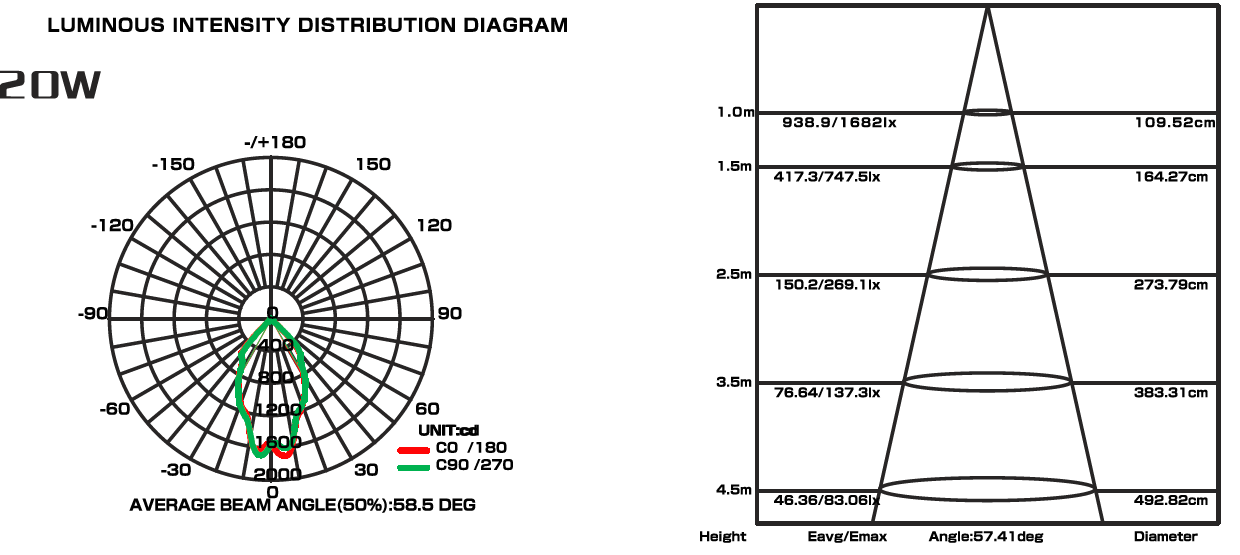

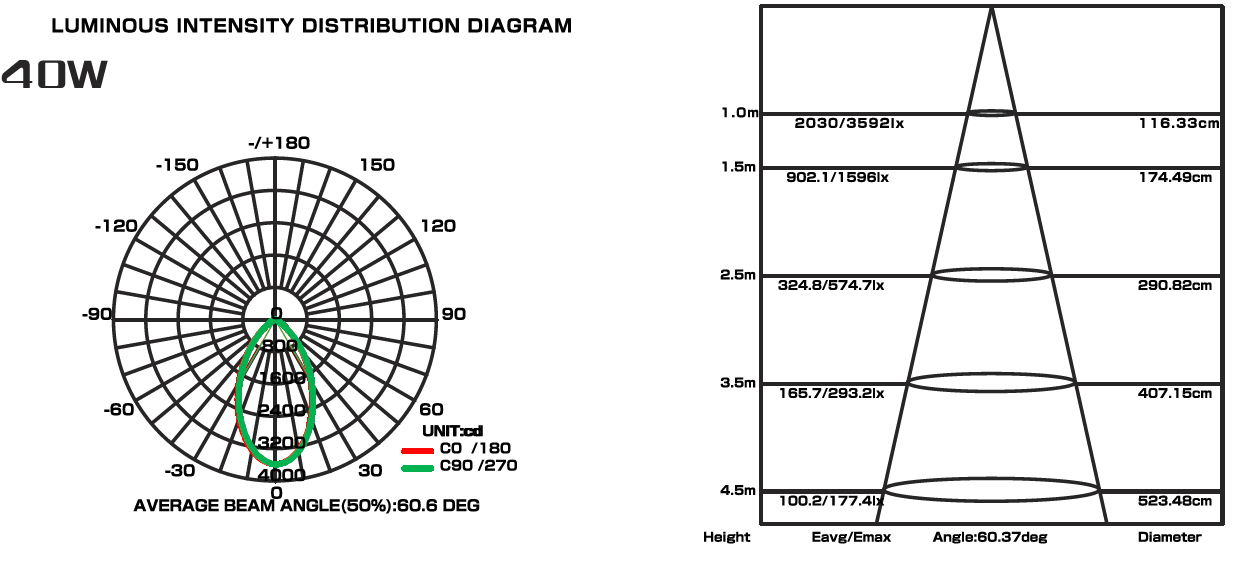

Beam angle
|
38/50/60°
|
Indoor Ceiling, subway,veranda as general lighting
8Inch is for mall, high ceiling 4~7 Meter
6Inch 20W/25W for ceiling 3~5 Meter
4Inch 15W for accent lighting such as hotel, cabinet
|
product box size
|
95*95*90mm
|
|
Carton size & Qty
|
495*495*375m(100Pcs/Carton)
|
·Turn power off before inspection, installation, or removal.
·Risk of Electric Shock – Do not use where directly exposed to water or weather.
·Suitable for damp locations.
·Suitable for use in open luminaires (fixtures).
·Do not use in enclosed fixtures.
·Do not open – no user serviceable parts inside. North America use on 120VAC, 50 - 60 Hz circuits.
·This device is not intended for use with emergency exit fixtures or emergency exit lights.
·This device complies with Part 15 of the FCC rules and has been tested and found to comply with the limits for a Class B digital device.
-These limits are designed to provide reasonable protection against harmful interference in a residential installation.
