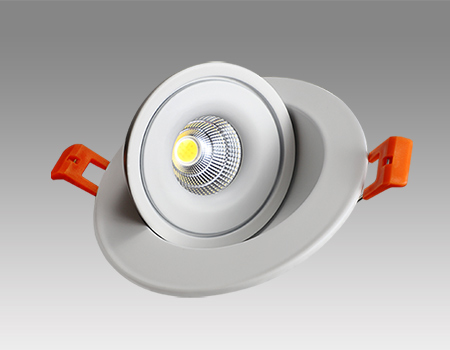

LED down light is designed for general lighting as well as auxiliary light Widely adopted in residential, commercial and architectural lighting Excellent light distribution, scientific thermal design, high CRI,high lumens
360Degree Rotatable and 38Degree vertically Beam angle

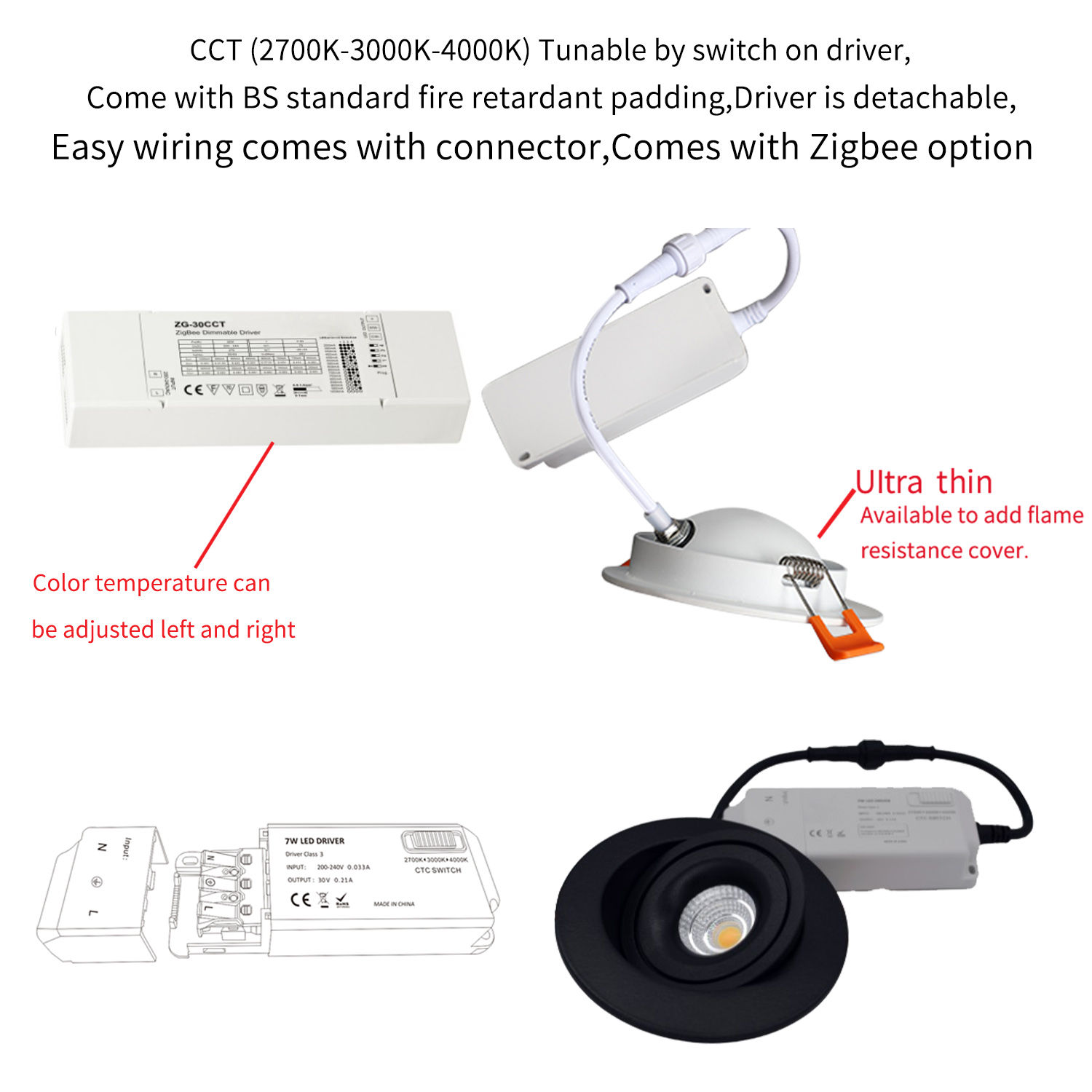

CCT changeable
2). High power factor, high color
rendering index, high luminance
3). Body temperature is 51-57 C after lighting test for 24 hours
Wattage: 7W PF: >0.9
Working voltage: AC180-265V CRI: >80

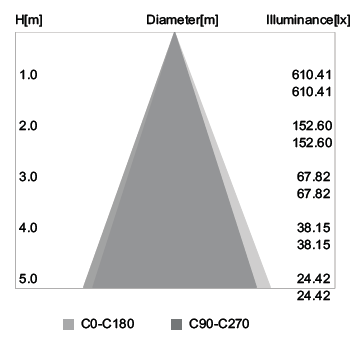

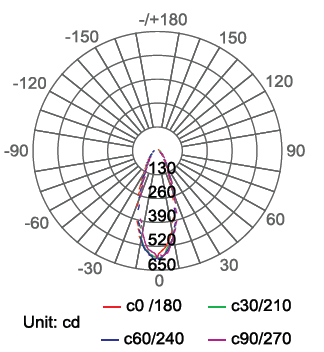

Lighting Angle: 38°60°
Heat sink: oxidized 6063 aluminum
Lifespan: 50000 hours
|
Model
|
SMD LED Qty:
|
Wattage(W)
|
CCT:(K)
|
Dimension
|
Beam Angle(̊)
|
|
SS-DL-1H-COB-7W-CCT
|
1 Pc COB
|
7W
|
2700K 3000K 4000K 6000K
|
φ110mm x H36mm Cutout:83mm
|
26°/ 38°/60°
|
Adopted for display case lighting, under cabinet lighting,
residential and commercial lighting etc
Suitable for wall and ceiling mounting, indoor using only
Only to be installed with qualified electrician
Kindly notice the power is off when installation
