4inch, 6inch,8inch,12inch panel light
Home>Products

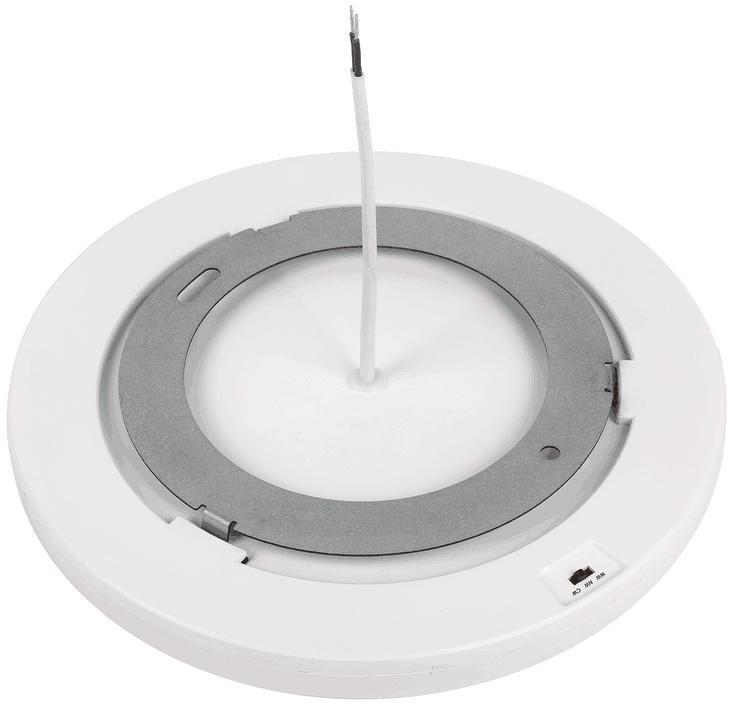

ICL-8IN-A18-SM
  • 1
  • 2
  • 3
  • 4
lElegant and ultra-thin design,18mm thickness;

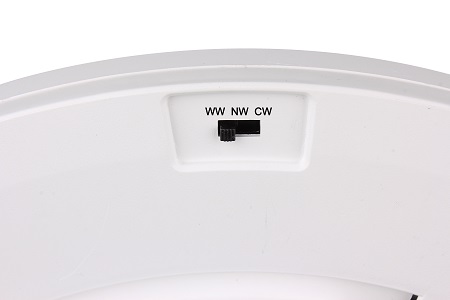

lPowerful functions: simple version, induction version, switchable CCT changed version;
lIndoor IP44, wide range of applications: corridors, office, lobby or kitchen, bathroom, Home bedroom, etc.);
lTo replace the traditional ceiling lamp, brings new concept of functional and modern decoration simple style, and with advantages of small size, DIY installation, low transport costs, saving stock fees.
Features
Specifications

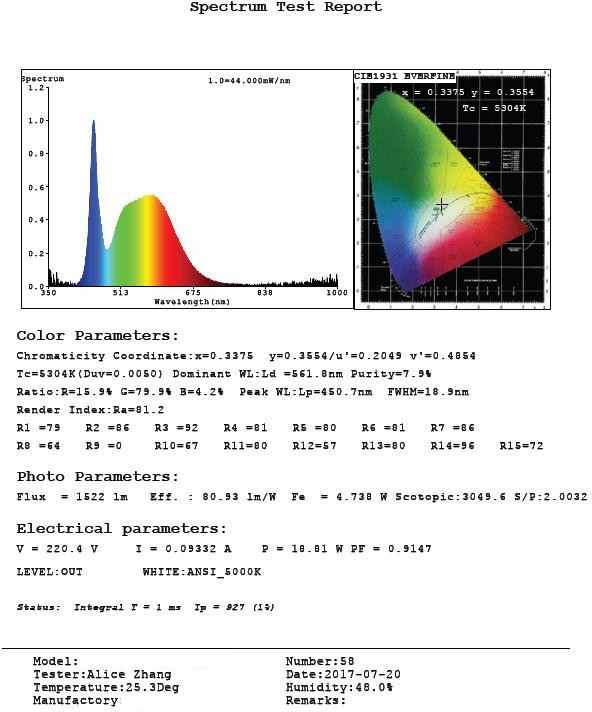

Technical information
Applications
Downloads

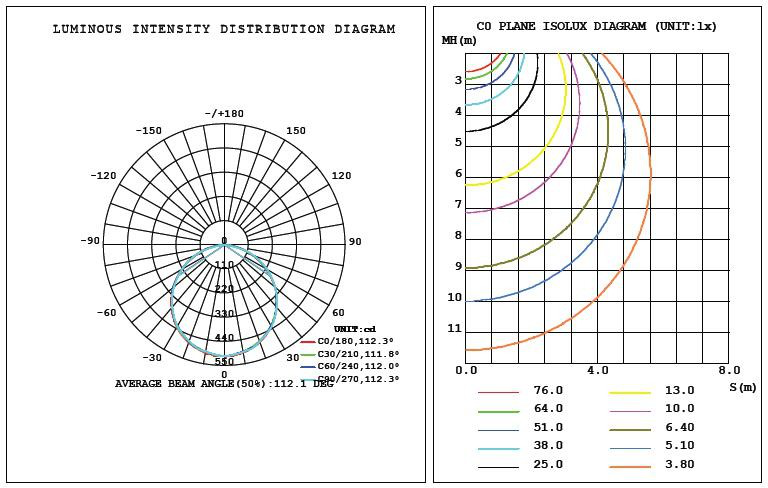

Photometric curve
Caution

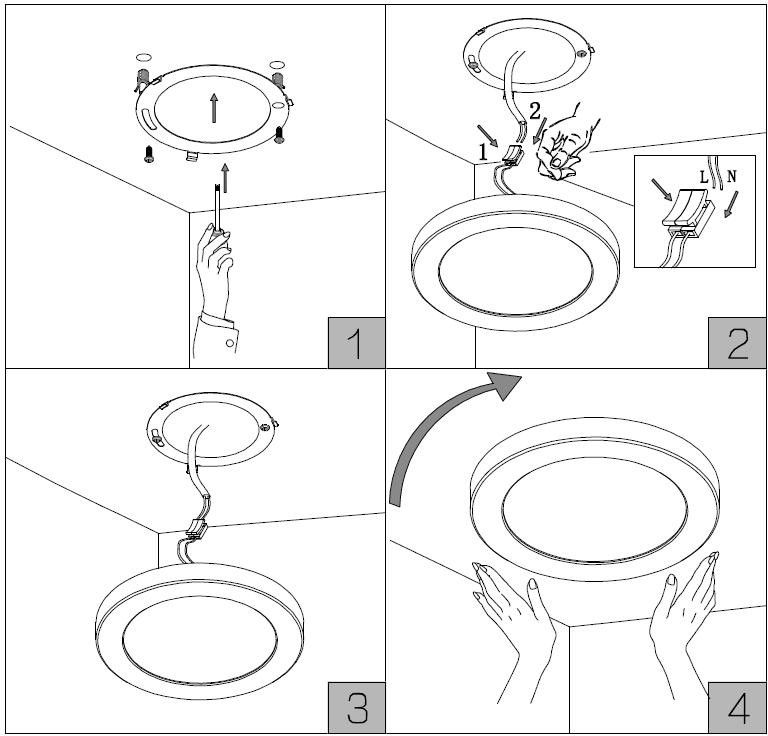

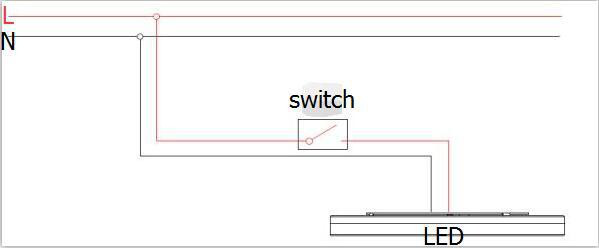

Installation
    Item
    Unit
    ICL-8IN-A18-SM
    ICL-8IN-A18-SM-MW
    Electrical Characteristics
    Input
    V
    AC120-240V
    AC120-240V
    Rate
    Hz
    50/60Hz
    50/60Hz
    Power
    W
    18±8
    18±8
    Input Current
    (max)

    A

    0.16

    0.16
    Power
    Factor
    PF
    ≥0.9
    ≥0.9
    Flickering
    --
    No Flickering
    No Flickering
    IP Class
    --
    IP20
    IP20
    Certification
    --
    CE
    CE
    Optical Characteristics
    LED QTY
    PCS
    56
    56
    LED Type
    --
    SMD 2835
    SMD 2835
    Lightening
    Way
    --
    Side-emitting
    Side-emitting
    Beam Angle
    Degree
    120±10°
    120±10°
    Luminous
    Flux
    LM
    1600±8%
    1600±8%
    Efficiency
    LM/W
    85LM/W
    85LM/W
    CCT
    K
    2700K6500K
    2700K6500K
    CRI
    Ra
    ≥80
    ≥80
    Working TEM
    °C
    -2045
    -2045
    Working Humidity
    RH
    090%
    090%
    Storage TEM
    °C
    -2050
    -2050
    Storage Humidity
    RH
    060%
    060%
    Design Lifespan
    H
    >40000
    >40000
    Usage Lifespan
    H
    >25000
    >25000
    Size/ Package
    Dimension
    MM

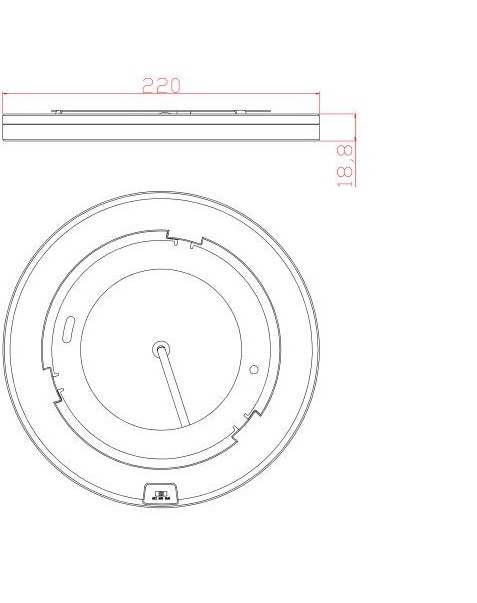

    Φ220x18.8mm
    Φ220x18.8mm
    Installation
    --
    Surface Mounted
    Surface Mounted
    Unit Size
    MM
    230*230*30
    230*230*30
    Carton Size
    MM
    475*475*170
    475*475*170
    QTY/CTN
    PCS
    20
    20
    N.W/PC
    KG
    0.37
    0.37
    G.W/CTN
    KG
    9.4
    9.4
