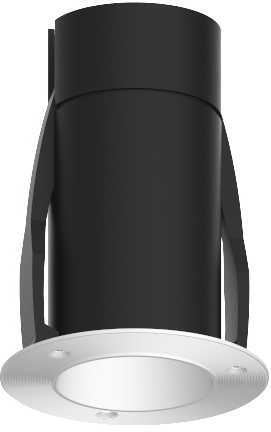

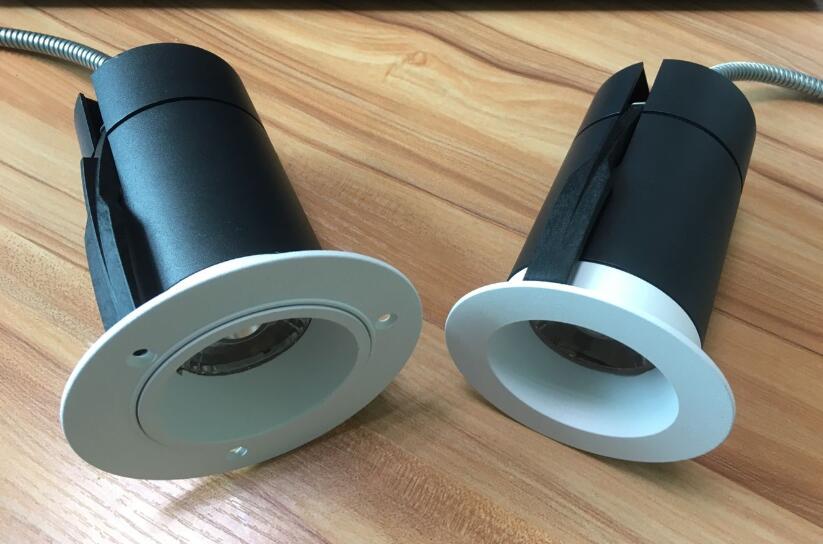

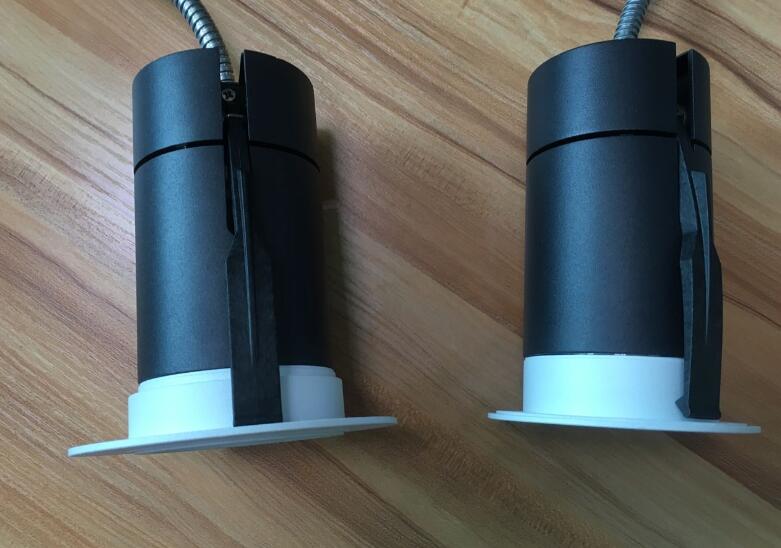

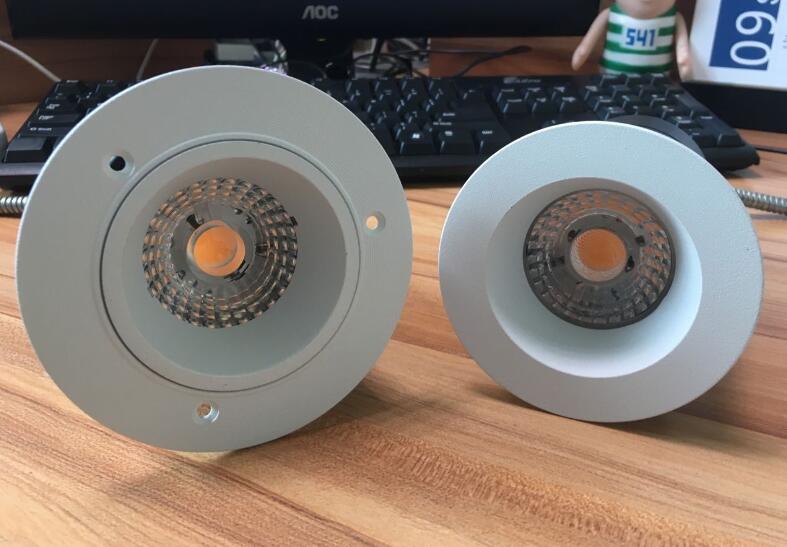

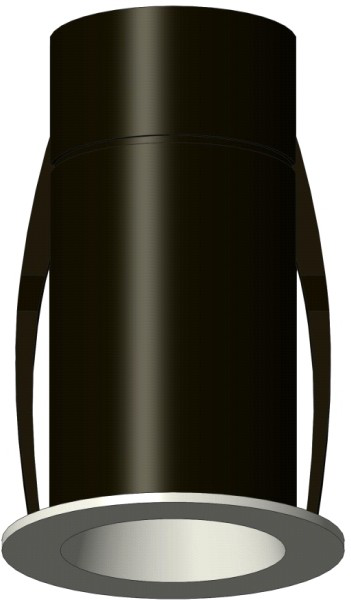

Small aperture LED downlight,two type of trim: Square and Round Unique spring design for easyinstallation
Features
Specifications
Technical information
Applications
Downloads
Photometric curve
Caution

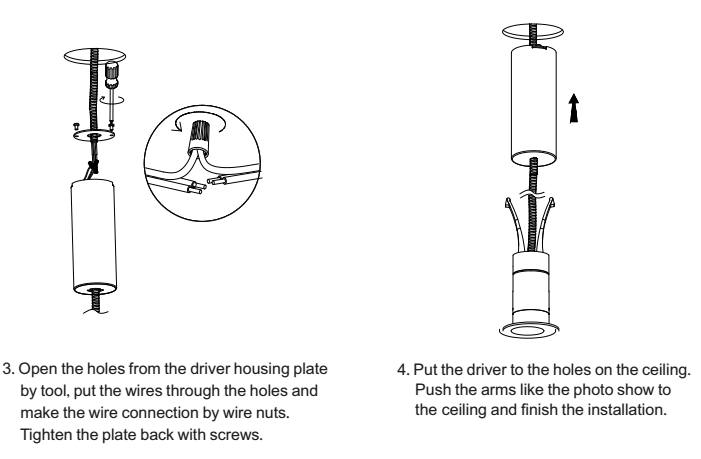

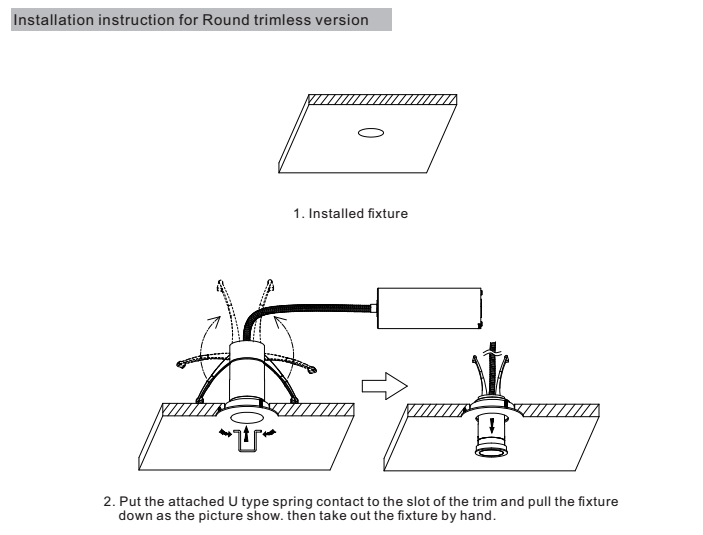

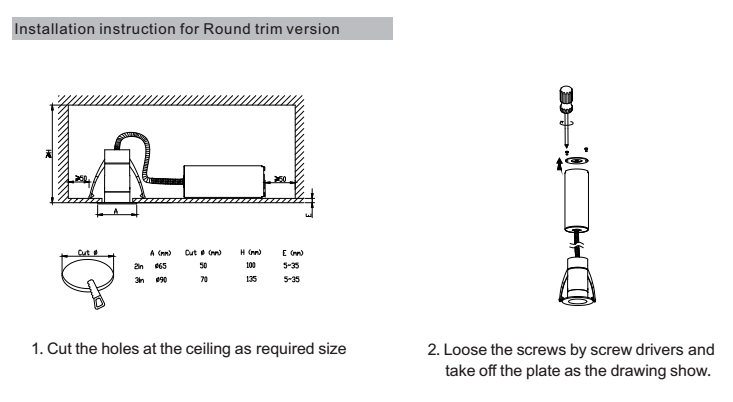

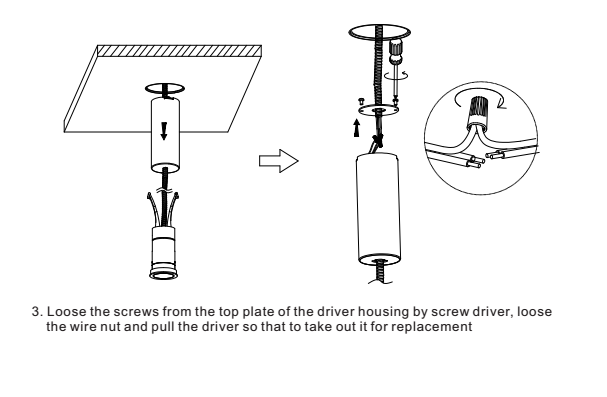

Installation
It consists of Fixture and dr- iver housing. There are trim and trim-less in round and square type The driver and fixture are connected with male/female connector for easy power connection and installation.
It is for high-end market, us-
ing ELV sensor to control the Protection class: on/off and brightness of the fixtures.
Material: Aluminum
Color: White/Black
Luminous color: 2700K,3000K,4000K
Beam angle: 15°25°36°60°
Power of the fixture: 14.5W
Length: 90m
Width:127mm

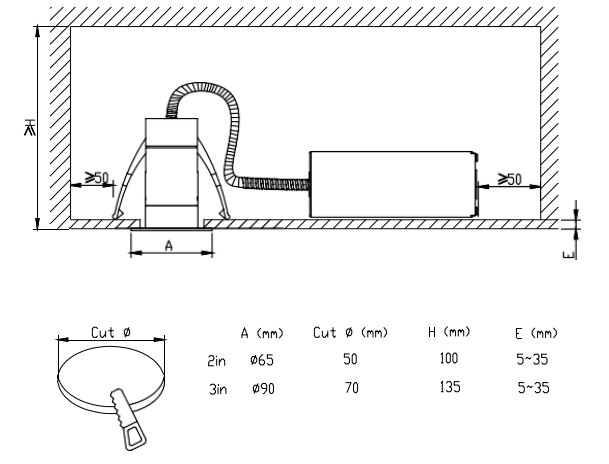

Ceiling cut: 3''
Supply voltage in volts: 120-277V
Protection class: I
Included LED:Yes
Energy effciency class: A++
Lifetime:50000h
Weight:1.2kgs
