Famous brand drivers options: PHILIPS, TRIDONIC, OSRAM, They are all with high power factor (PF) >0.9, flicker - free, 50000hrs long lifespan.
Equipped with the latest focusing and shaping technology, can freely change the light spot shape, size and sharpness. Its lighting effect is comparable to advertising backlight, commonly used for cultural relics, paper paintings, and other display lighting.
|
TK-140-25W-3WIRE-T
|
TK-120-15W-3WIRE-T
|
TK-120-8W-3WIRE-T
|
Wattage
|
25W
|
15W
|
8W
|
Luminous Flux Range
|
3000~3600Lm
|
2500~2900Lm
|
1800-2200Lm
|
Lumen Efficiency
|
90~100Lm/W
|
90~100Lm/W
|
90~100Lm/W
|

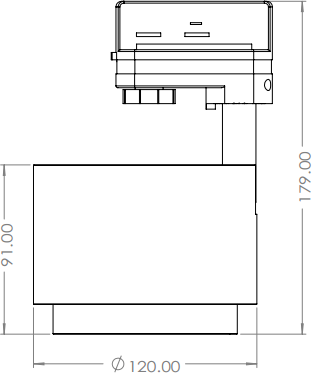

Dimension
|
Φ140mm, (L): 179mm
|
Φ120mm, (L): 179mm
|
Φ 120mm, (L) 179mm
|
LED Brand
|
CREE
|
CRI
|
> 80/90Ra
|
CCT
|
2700K /3000K /4000K /5000K /6000K
|
Beam angle
|
12°, 24°, 38°
|
Angle Adjustment
|
355° Horizontal
|
Driver Brand
|
Philips, Tridonic, Osram, LIFUD ,EAGLERISE,CTI
|
Power Factor
|
>0.9
|
Input voltage
|
220-240VAC 50/60HZ
|
Dimming Capacity
|
On-off/Triac Dimming/DALI Dimming/0-10V Dimming
|
Material
|
Cold forge aluminum
|
Color Finish
|
Silver/ Matt White/Matt Black
|
IP Rating
|
IP40
|
Flicker Free
|
<3%
|
Certificate
|
CE
|
Life time
|
50000H
|
Optics
|
Reflector, Lens
|
Adaptor
|
1-circuit/3-circuits
|
Applicable to automobile exhibition, jewelry, star hotel, brand clothing, high-end club, museum exhibition hall, chain store, brand business hall, professional window, counter and other lighting places
