This T-BAR Light
• Customer/Designer
Elegant appearance of space
Flexibility for creativeness of customers and designs
Reduce overall project costs(materials and labours)
Even light distribution
•Installers/Contractors
Simple installation procedures
Low maintenance required
Light weighted and easy for installation
•Wholesaler/Distributors
Products with unique selling points
Reduce warehouse and logistic costs
Long service life. Lifetime is determined by the power supply
CC and CV version both available by request
|
Model
|
Cover type
|
Power
|
Input Voltage
|
Total Luminous Flux
|
Efficiency(Lm/W
|
Color Temperature(K)
|
CRI>
|
Length(mm)
|
|

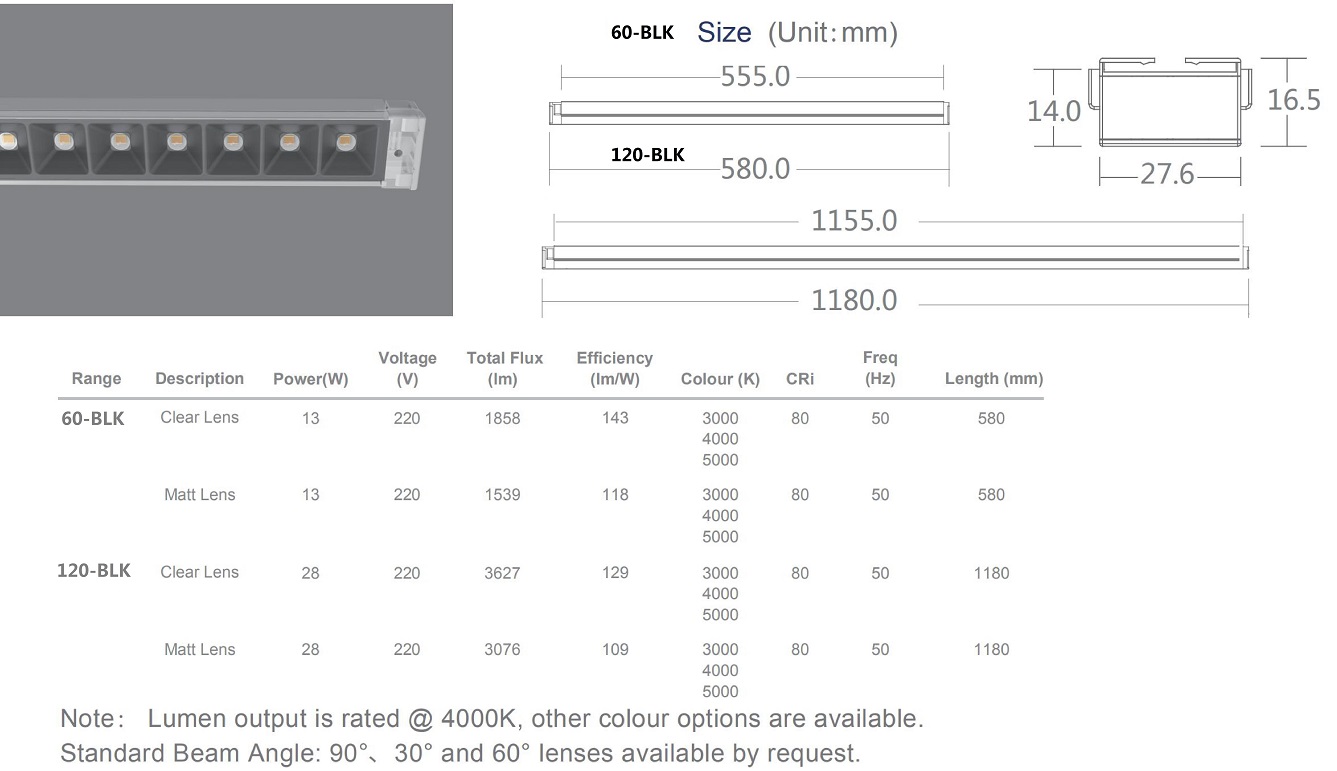

60-BLK
|
Clear Lens
|
13W
|
220V 50~60HZ
|
1858Lm
|
143Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
1539Lm
|
118Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
120-BLK
|
Clear Lens
|
28W
|
220V 50~60HZ
|
3627Lm
|
129Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
3076Lm
|
109Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
Model
|
Cover type
|
Power
|
Input Voltage
|
Total Luminous Flux
|
Efficiency(Lm/W
|
Color Temperature(K)
|
CRI
|
Length
|
|

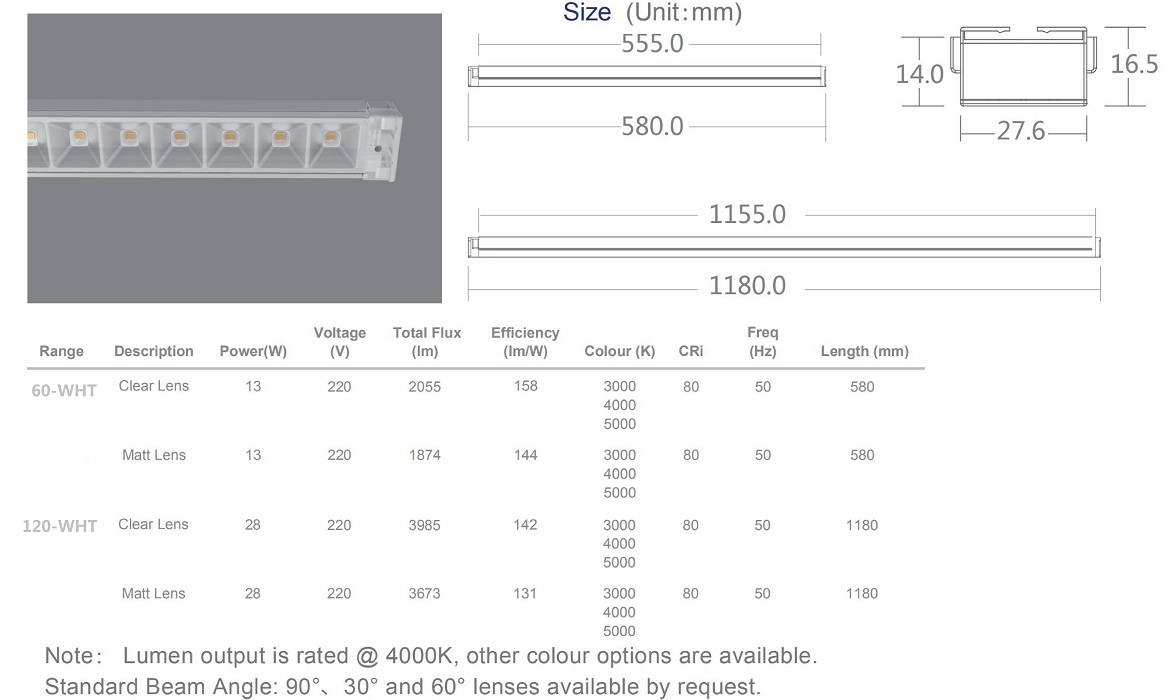

60-WHT
|
Clear Lens
|
13W
|
220V 50~60HZ
|
2055Lm
|
158Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
1874Lm
|
144Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
120-WHT
|
Clear Lens
|
28W
|
220V 50~60HZ
|
3985Lm
|
142Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
3673Lm
|
131Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
Model
|
Cover type
|
Power
|
Input Voltage
|
Total Luminous Flux
|
Efficiency(Lm/W
|
Color Temperature(K)
|
CRI
|
Length
|
|

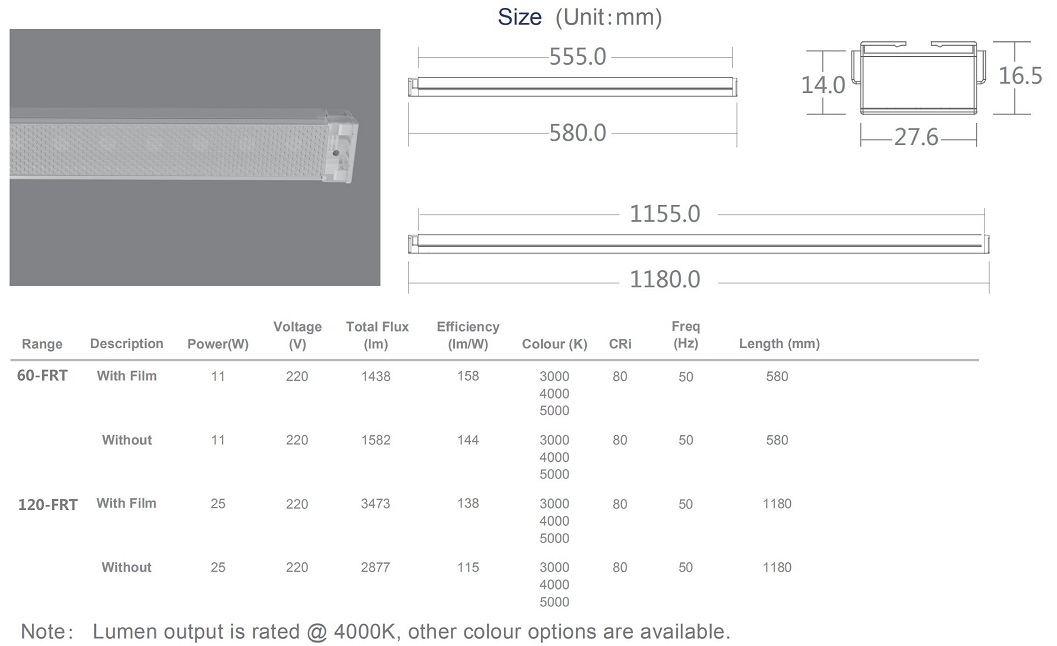

60-FRT
|
Clear Lens
|
11W
|
220V 50~60HZ
|
1438Lm
|
158Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
1582Lm
|
144Lm/W
|
3000K/4000K/5000K
|
80Ra
|
580x27.6x16.5mm
|
|
120-FRT
|
Clear Lens
|
25W
|
220V 50~60HZ
|
3473Lm
|
138Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
|
Matt Lens
|
|
220V 50~60HZ
|
2877Lm
|
115Lm/W
|
3000K/4000K/5000K
|
80Ra
|
1180x27.6x16.5mm
|
|
Optical
|
Light Source
|
SMD
|
|
|
Luminous Flux (lm)
|
>1500lm~1600Lm 60CM
>2900Lm~4000Lm 120CM
|
|
|
Color Temperature CCT(K)
|
2200K-3000K
|
|
|
Color Rendering Index (CRI)
|
>95
|
|
|
Beam Angle θ/2
|
30/60/90° and Frost cover (100°)
|
|
|
Light Decay rate (%)
|
Less than 3% in 3,000 hours
|
|
|
Lifespan (Hrs)
|
≥30,000Hrs
|
|
Electrical
|
Power Input(V)
|
AC220-240V
|
|
|
Frequency (Hz)
|
50/60 Hz
|
|
|
Power Consumption (W)
|
11W 60CM
25W 120CM
|
|
|
Power Factor (PF)
|
>0.9
|
|
|
Start Time (S)
|
≤0.1 S
|
|
Mechanical
|
Material
|
AL6063
|
|
|
IP grade
|
IP20
|
|
|

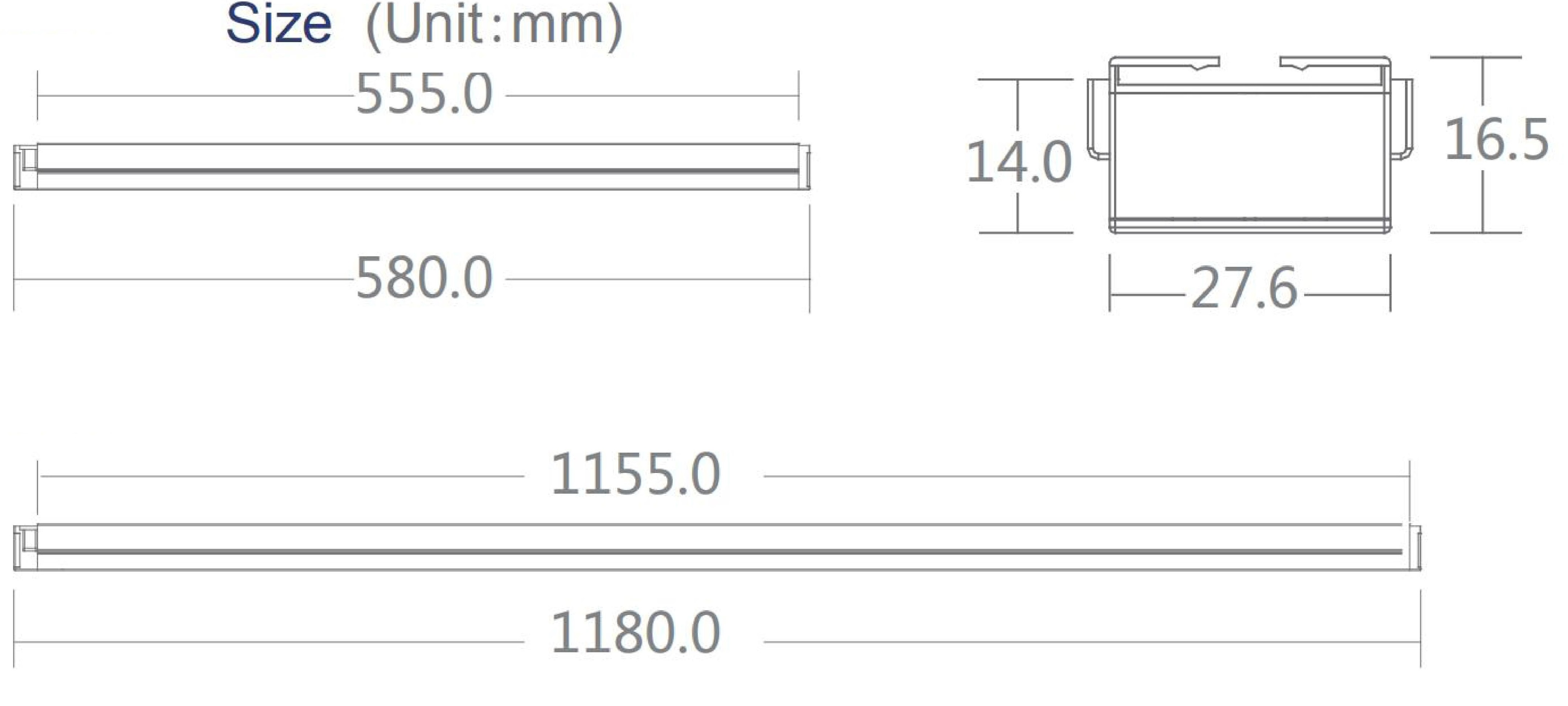

Dimension(mm）
|
580x276x16.5mm
1180x276x16.5mm
|
|
|
Net Weight(g）
|
276g
|
|
Others
|
Working Temperature & Humidity
|
-20℃~45℃,10%~80% R.H.
|
|
|
Storage temperature & Humidity
|
-30℃~65℃,10%~80% R.H.
|
|
|
Certificate
|
CE RoHS
|
Product Life Span:
Number of switching cycles：>50000
6000hours lumen maintenance rate (%)：>90
1000hours failure rate (%)：<5
EN62493 EN60598 EN62471 EN55015
EN61000-3-2 EN61000-3-3 RoHS
according to 1194/2012
