Switch-DIM.& 1-10v Dimmable

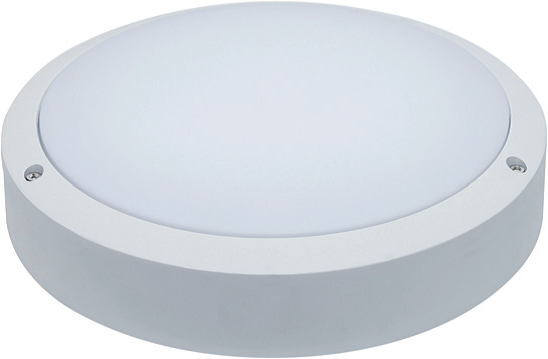

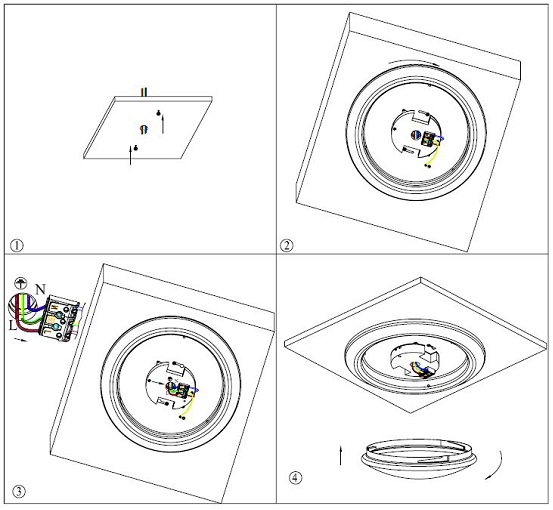

It is a decorative surface luminaire using high quality LG SMD5730 LEDs as lighting source and high frequency driver in all models, suitable for wall and ceiling mounting.

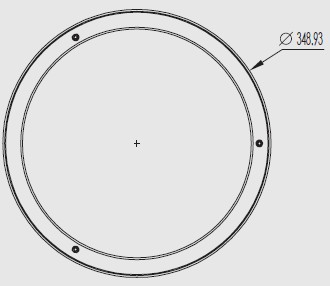

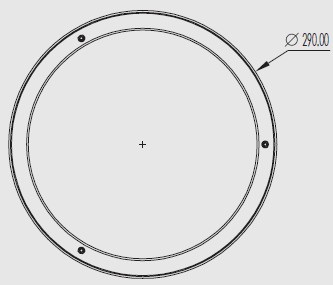

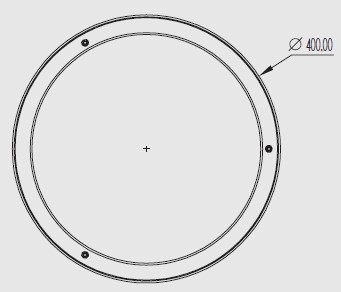

The aluminum base is supplied complete in a variety of finishes. The diffuser is attached using a twist and
lock type, made by a high grade of PMMA that meets the IK 08 5J standard.
Ceiling light with Dimmable and Microwave sensor function is available.
PF>0.9
Conversion Efficiency>85%

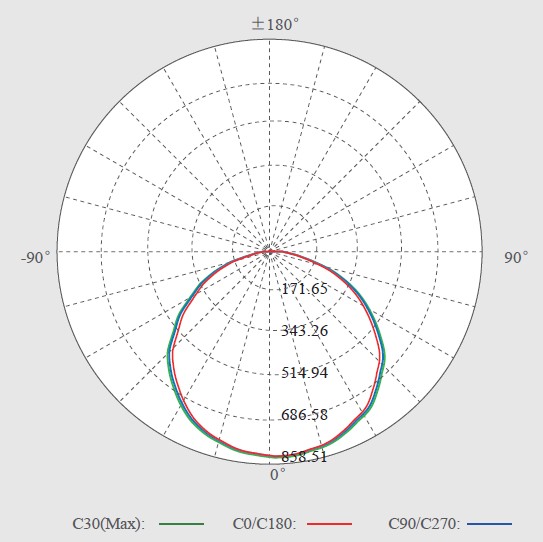

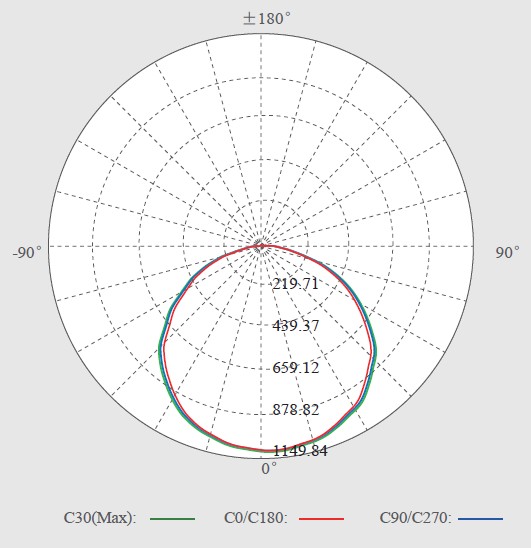

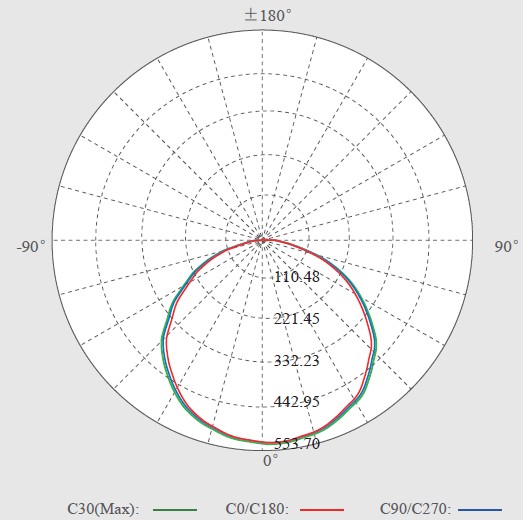

Beam angle: 120°

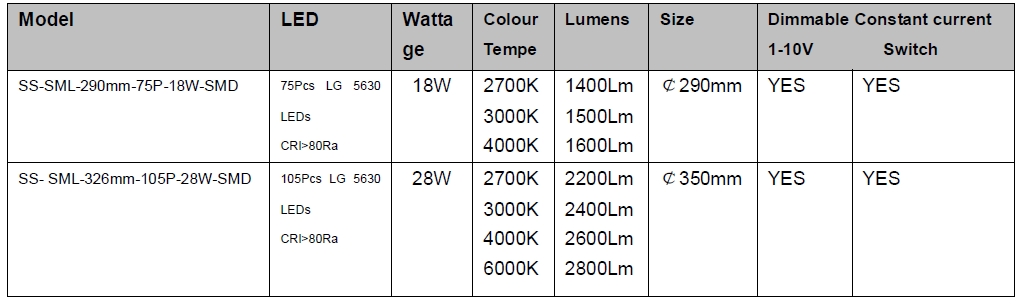

CCT : cool white : 6000K ,Commercial white : 4000K , warm white : 2700 and 3000K
White or Satin finish base available
This driver has buit-in permanent memory against power failure, the light always start up at the previous level when they were switched off last time.
Up to 50pcs drivers when connected to the same switch, This means there is no need for any additional
synchrony wire in larger installations, where many drivers should
be controlled by one switch.
For the synchronization to work correctly when more than one driver is connected to the same push button, please follow the
steps below after the drivers are connected:
• Press the push button for more than one second (long push), followed by a short push (<1s).
• now that the devices are switched off, do a long push,the system will now be synchronized
